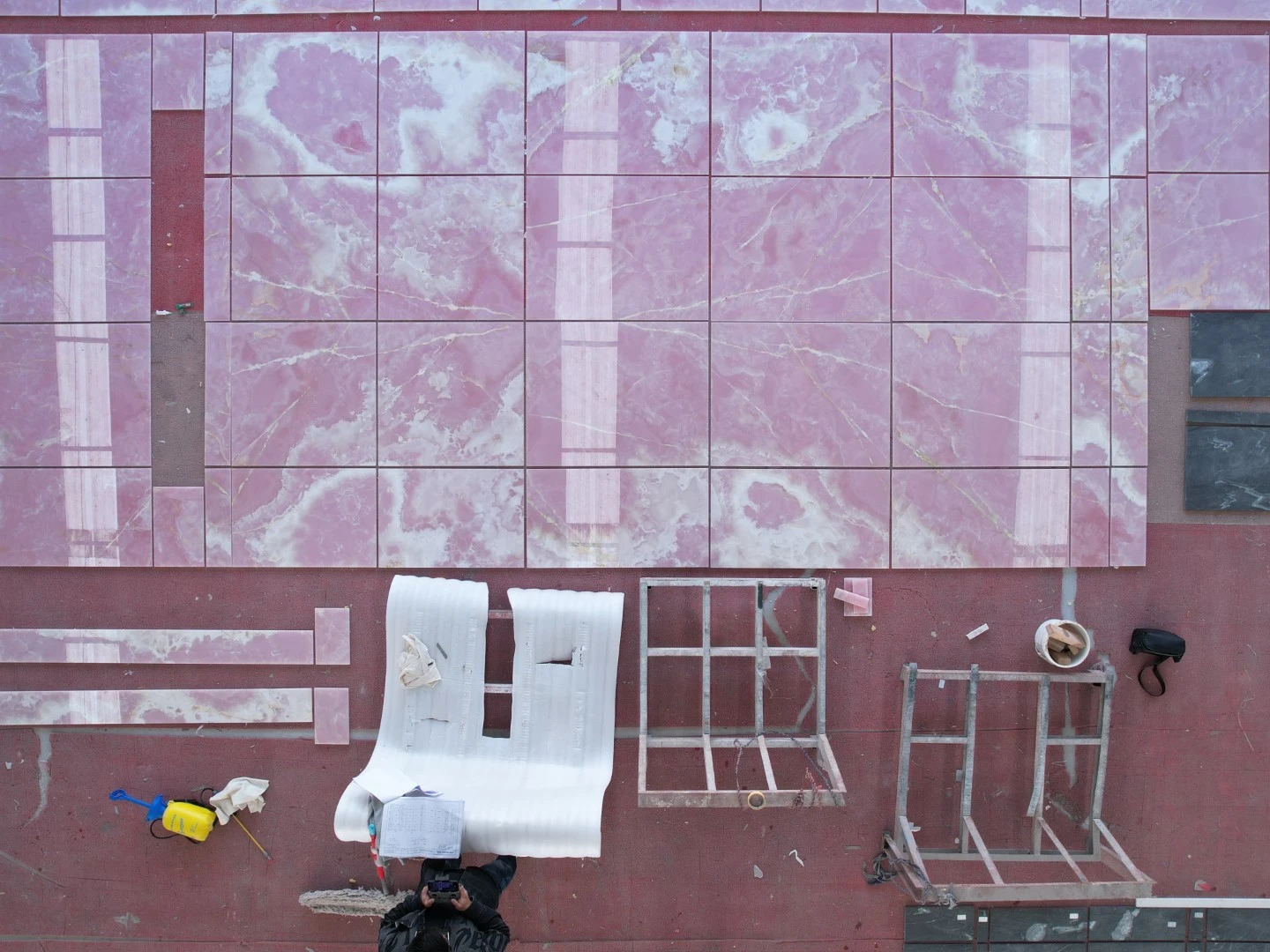

Factory dry layout of fabricated Pink Onyx tiles for color, vein continuity, piece condition and replacement review.
Complete factory dry layout of polished Pink Onyx wall tiles for checking piece positions, vein continuity, color variation, cutouts and overall visual coordination.

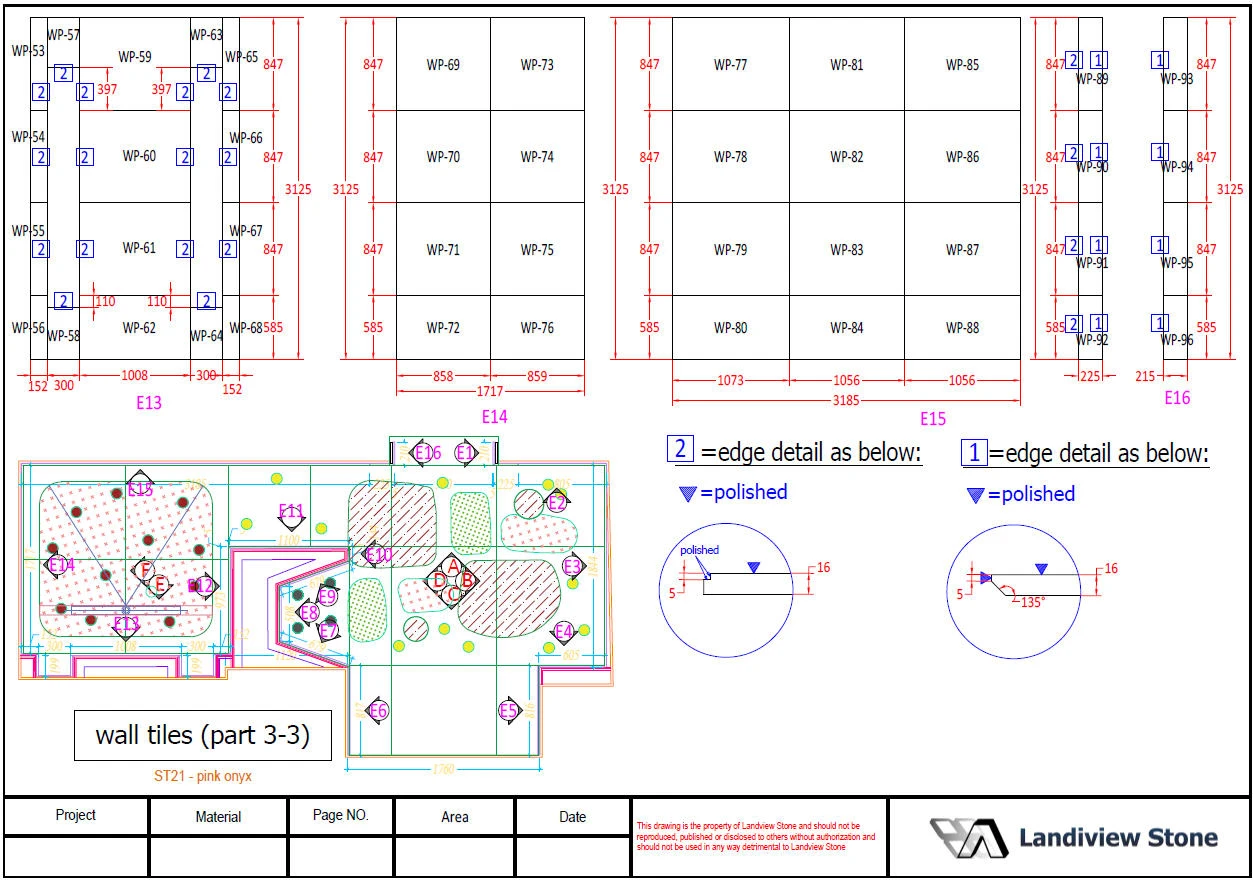

Landiview Stone shop drawings for custom 16 mm polished Pink Onyx wall tiles with piece numbers, dimensions and edge details.

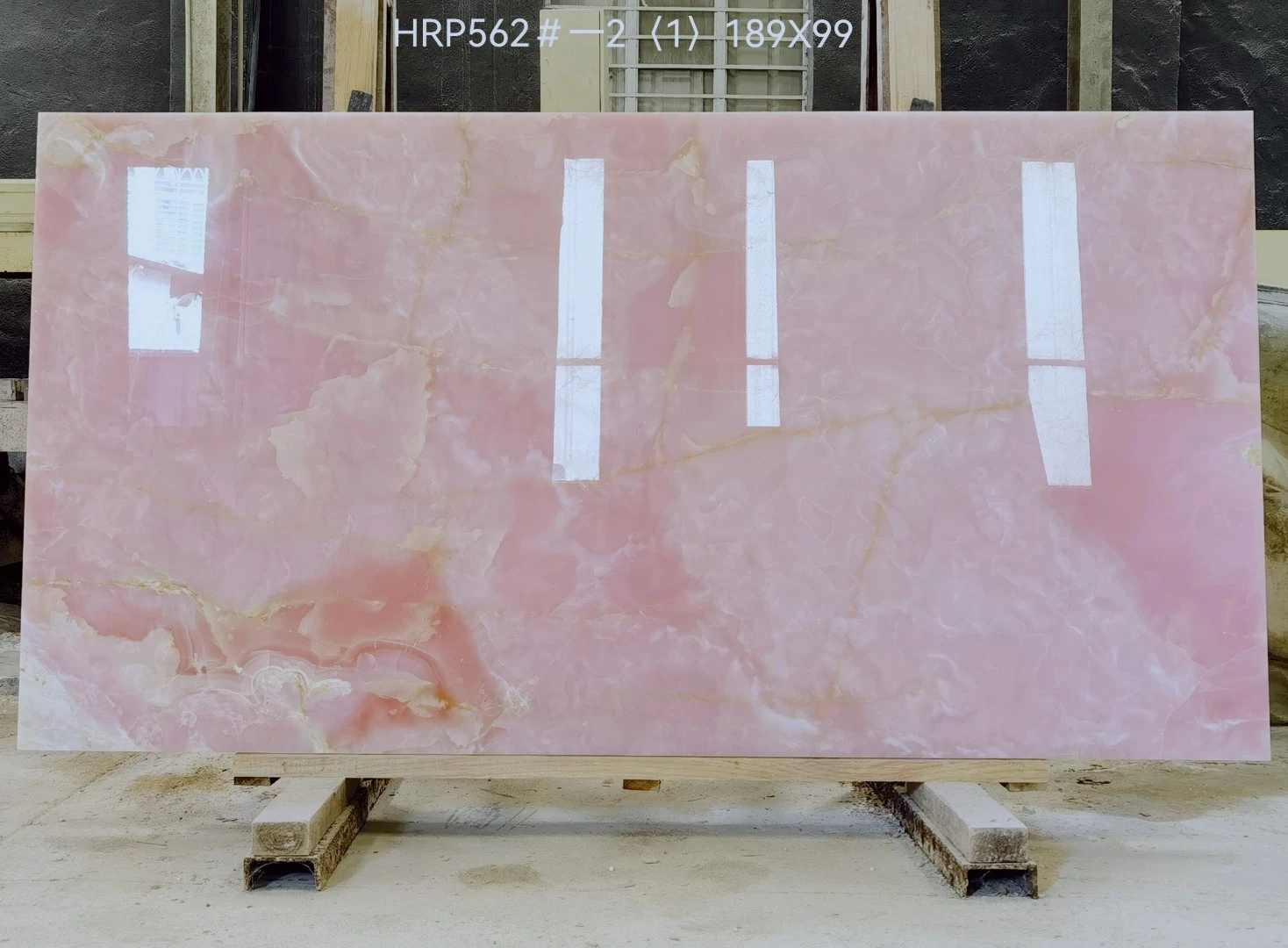

Client-approved Afghan Pink Onyx slab with soft pink clouding, cream-white movement and natural tonal variation.
AutoCAD cutting layout placing numbered Pink Onyx tile shapes over approved slab images to coordinate yield and veining.

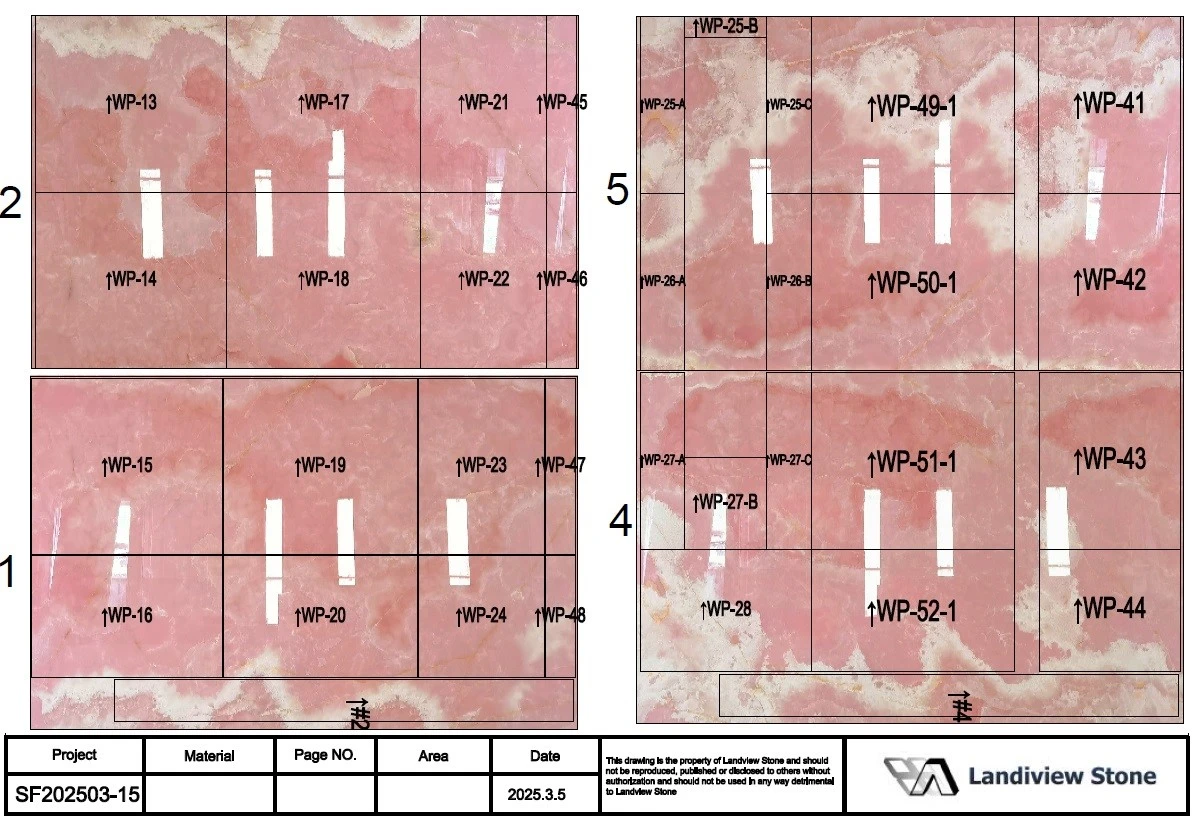

AutoCAD assembly simulation showing numbered Pink Onyx tiles arranged by elevation before physical cutting.
Pink Onyx Tiles
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Executive Summary
Pink Onyx Tiles are specified for their soft pink field, cloud-like movement and project-specific visual composition. Since each slab varies, procurement should define the tile dimensions, slab approval, cutting position, vein direction, adjoining-piece relationships and acceptable appearance range.
Landiview Stone coordinates the intended composition before irreversible cutting, then verifies the fabricated set through physical dry layout before sealing and packing.
Key Facts
| Specification Item | Project Information |
| Product | Custom cut-to-size Pink Onyx Tiles |
| Origin | Afghanistan |
| Thickness | 16 mm |
| Finish | Polished |
| Protection | Compatible water-based stone sealer applied after acceptance |
| Appearance control | Current slab approval, AutoCAD cutting and vein layout, piece numbering and factory dry layout |
| Supply basis | Approved shop drawings and current slab availability |
Production Workflow
1. Review architectural drawings or design concept images and identify the stone scope.
2. Prepare Pink Onyx tile shop drawings showing dimensions, finish, piece numbers, joints and edge details for client or design-team approval.
3. Submit photos, videos and slab numbers for available Pink Onyx slabs, subject to current availability.
4. Use approved slab imagery in AutoCAD to simulate cutting positions and assemble the resulting tile images by elevation for client review.
5. Cut and finish the tiles, then dry lay the actual pieces. Isolate nonconforming pieces and cut visually compatible replacements where required.
6. Apply a compatible water-based stone sealer to accepted tiles according to the product manufacturer instructions. 7. Number and pack finished pieces with geometry-specific foam and plywood inner protection, solid-wood outer crates and waterproof wrapping film.
AutoCAD plans the intended appearance; factory dry layout checks the fabricated appearance. Both steps reduce information gaps, but natural variation, grout, lighting and site installation still affect the final result.
Dry layout also helps distinguish stable natural features from open or unstable fissures, structural cracks and processing damage. A natural fissure is not automatically a defect; acceptance depends on stability, location, fabrication consequences and the agreed quality criteria.
What Buyers Should Specify Before Ordering
- • Architectural drawings, elevations, field dimensions and installation location
- • Tile sizes, quantities, 16 mm thickness, polished finish, joint width and visible-face rules
- • Preferred color range, vein direction, adjacent-piece relationships and approval deliverables
- • Substrate, fixing system, wet-area conditions, backlighting intent and applicable project specifications
Final substrate design, attachment, adhesives, joints, waterproofing and installation must follow project specifications, local regulations and qualified local professionals. The Natural Stone Institute Dimension Stone Design Manual covers broader guidance for installations, wet areas, testing, tolerances and maintenance [3].
Frequently Asked Questions
Q: Can you provide samples?
A: Yes. Normally one or two samples can be provided without a sample charge. Typical sizes range from 100 × 100 mm to 200 × 200 mm. Courier cost is paid by the customer, and availability depends on the current material. A small sample cannot represent the full slab composition.
Q: Can I see current slab photos and videos before ordering?
A: Yes. Subject to actual inventory, Landiview Stone can provide current-lot photos, videos, slab numbers, surface-review information and the available color and pattern range.
Q: Can Landiview Stone prepare shop drawings from architectural drawings or concept images?
A: Yes. The technical team can develop stone-specific shop drawings for client or design-team review. Shop drawings do not replace structural, code or installation responsibility of locally licensed professionals. See What Is Cut-to-Size Stone?
Q: How do you help control vein layout and installed appearance?
A: Approved slab imagery, AutoCAD cutting and vein-layout simulation, client approval, numbering and dry layout help coordinate the expected composition. Natural differences and site installation prevent an exact visual guarantee. See Natural Stone Slab Layout in AutoCAD.
Q: Can Pink Onyx Tiles be used for backlit wall applications?
A: Potentially, yes. Pink Onyx is naturally translucent, but the visible result varies between slabs and across individual areas of the same slab. Backlighting performance should be assessed using current slab images or physical testing. The lighting system, substrate, adhesive, joint treatment, panel dimensions and installation method must be coordinated by the project designer and qualified local professionals.
Q: How should installed Pink Onyx Tiles be maintained?
A: Use a pH-neutral cleaner formulated for natural stone, blot spills promptly and avoid unknown acidic or alkaline cleaners and abrasive tools. The Natural Stone Institute recommends mild, non-acidic products for calcium-carbonate stone and following manufacturer directions [4]. Sealer selection and reapplication depend on stone, finish, exposure and the sealer instructions.
Q: Are all Pink Onyx tiles visually identical?
A: No. Color, clouding, veins, translucency and natural features vary, so approve current slabs and the planned layout.
Q: Why apply a water-based stone sealer?
A: A compatible water-based sealer is a project-selected protective treatment. It does not make stone stain-proof or maintenance-free. Testing, curing and reapplication must follow manufacturer instructions.
Q: What is needed for a quotation?
A: Provide drawings or concept images, dimensions, quantities, edge and joint requirements, destination and inspection requirements. Planning is project-specific and subject to current slab availability.
About Landiview Stone
Landiview Stone supplies slabs to importers, distributors and fabricators, and project-specific cut-to-size or finished products to contractors, developers, designers, builders and other project buyers. Services can include shop drawing review, slab scanning, AutoCAD cutting and vein-layout simulation, fabrication, dry layout, piece numbering, finished-product inspection, temporary reinforcement and export protection. Complex assemblies may also use three-dimensional modeling and virtual assembly review.
Selected international project experience includes:
- • Marble furniture, bathroom vanity tops and shower wall panels for the Grand Hyatt Singapore renovation project
- • Stone supply for stations on Singapore's Thomson-East Coast Line
- • Interior stone products for the Wynn project in the United Arab Emirates
- • Marble products for public areas of the 255 East 77th Street luxury residential project in New York
- • Interior and exterior marble and granite products for three high-end custom homes on Tuckahoe, Massachusetts, USA
Request A Quote
Send Landiview Stone your architectural drawings or design concept images, tile schedule, quantities, dimensions, destination and appearance expectations. The project team can review the stone scope and prepare a project-specific quotation subject to current Pink Onyx slab availability.
