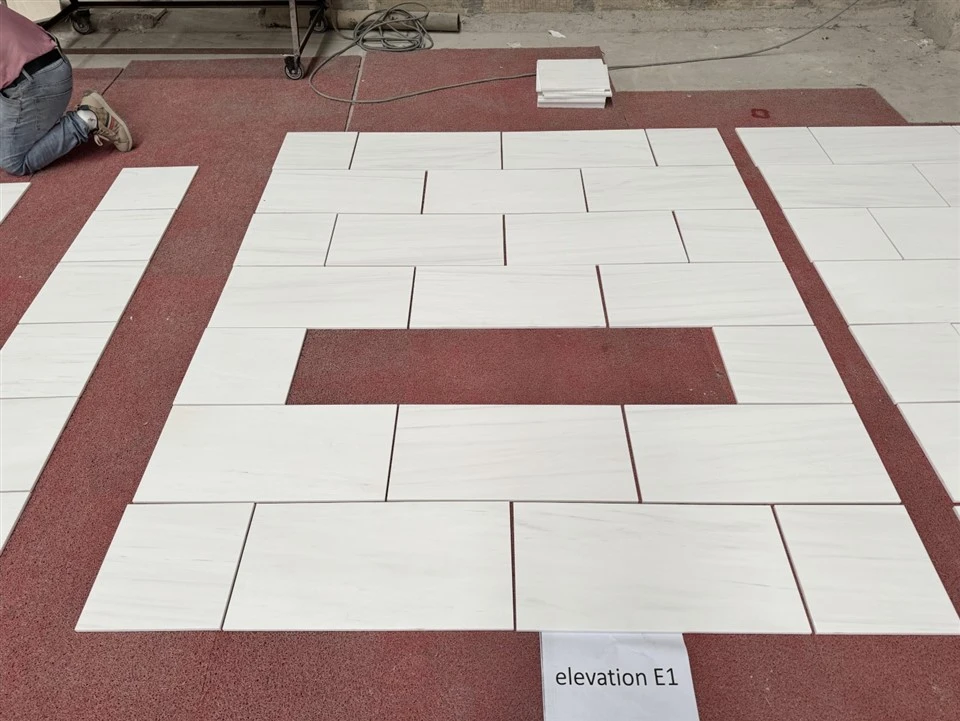

Factory dry layout of fabricated Bianco Dolomite Marble tiles for elevation E1, arranged for visual inspection, quality control and replacement-piece review.

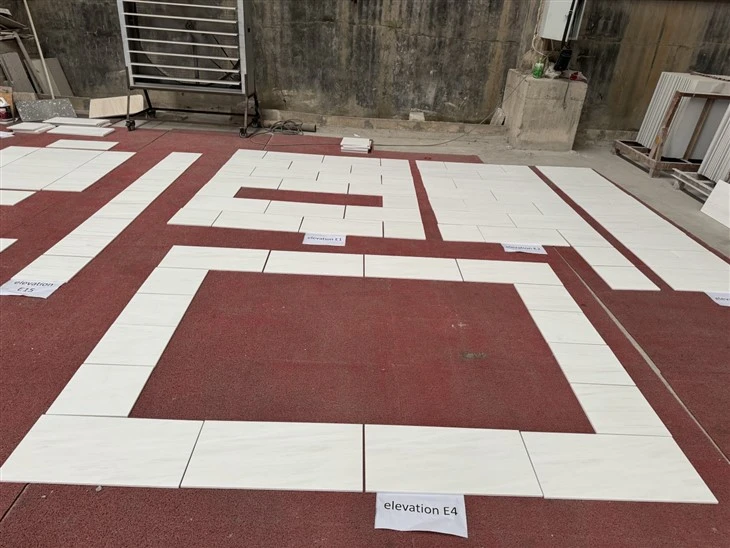

Honed Bianco Dolomite Marble tiles dry laid by numbered bathroom wall elevations to check the finished pieces against the approved shop drawings, vein layout and quality requirements before packing.

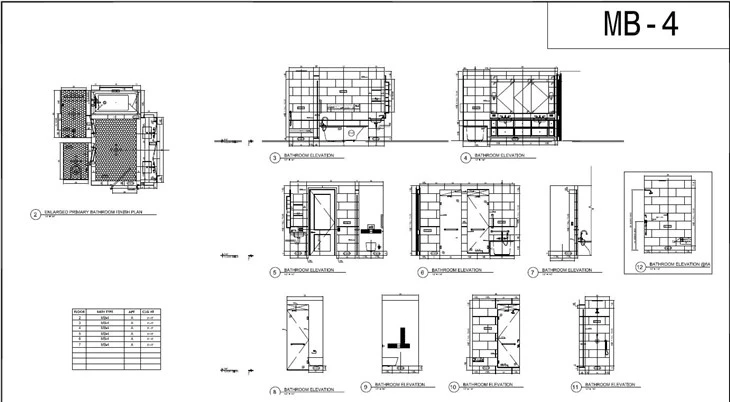

Client architectural drawing for the MB-4 primary bathroom showing the finish plan, wall elevations and dimensions used to define the Bianco Dolomite Marble tile scope.
Current Bianco Dolomite Marble slab image submitted for client approval, showing a white background with soft linear gray movement.

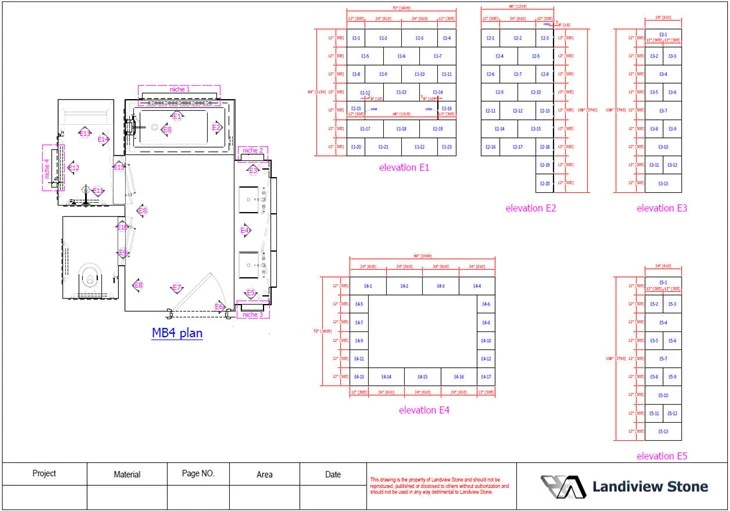

Landiview Stone shop drawings developed from the architectural drawing, with MB-4 plan references, E1 to E5 wall elevations, tile sizes and piece numbers.

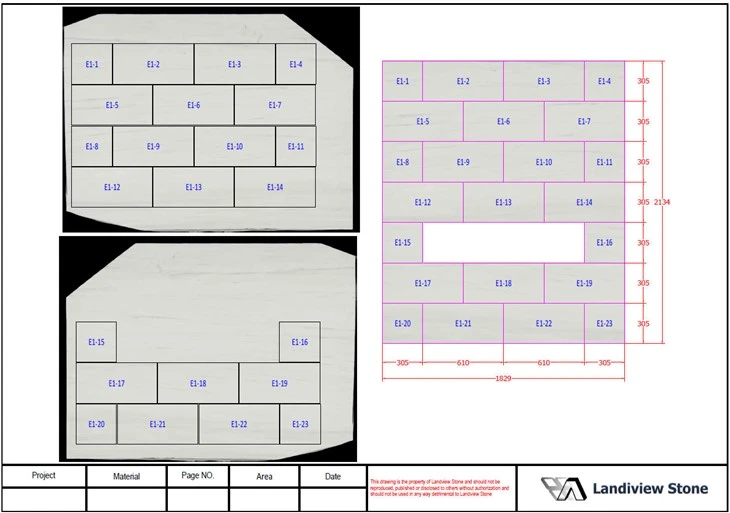

AutoCAD cutting and vein-layout simulation showing numbered E1 tiles positioned on approved slab images and assembled into the intended wall elevation.
Bianco Dolomite Marble Tiles
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Executive Summary
This Bianco Dolomite Marble tile package was managed as a coordinated architectural finish rather than a collection of unrelated pieces. Client-approved shop drawings, actual slab review, AutoCAD cutting simulation and factory dry layout helped align tile dimensions, numbering, vein direction and the expected installed composition before export.
Bianco Dolomite Marble is a natural Turkish marble with a light background and restrained gray movement. For this project, Landiview Stone fabricated 18 mm slabs into honed modular wall tiles. The two specified sizes create a staggered composition while preserving a consistent 305 mm course height.
Because marble is a natural material, tonal movement, veining and natural fissures can occur. The approval workflow is designed to make those characteristics visible earlier and to distinguish acceptable natural variation from structural cracks, fabrication damage or other nonconforming conditions. ASTM C503/C503M covers marble dimension stone, including slabs and tiles, and identifies material characteristics and physical-property categories relevant to selection; project-specific compliance still depends on the specified application and documentation [1].
Key Facts
| Project Attribute | Specified Information |
| Product | Custom Bianco Dolomite Marble tiles |
| Stone origin | Turkey |
| Slab thickness | 18 mm |
| Surface finish | Honed on all visible tile faces |
| Tile sizes | 24 × 12 in. and 12 × 12 in., corresponding to 610 × 305 mm and 305 × 305 mm |
| Primary application shown | Custom primary-bathroom wall elevations |
| Digital approval | Stone shop drawings plus AutoCAD slab cutting and vein-layout simulation |
| Factory quality control | Dry layout, visual review, piece numbering and replacement of nonconforming tiles where required |
| Surface protection | Water-based protective sealer applied to qualified finished tiles; compatibility, coverage and curing follow the selected product manufacturer's instructions |
| Export protection | Project-specific foam and plywood inner packing, solid-wood outer crates and waterproof wrapping film |
From Architectural Drawing to Finished Tiles
The central control point is the approval chain: architectural scope, stone shop drawings, current slabs, digital cutting layout, physical dry layout and final inspection. Each stage answers a different buyer question before the next irreversible production step.
1. Review the client's architectural drawing and isolate the marble scope, wall elevations, openings, interfaces and dimensional requirements.
2. Prepare Bianco Dolomite Marble tile shop drawings showing the installation plan, elevation references, modular sizes, joints, piece numbers and fabrication information for client or design-team review.
3. After drawing approval, submit images or videos of currently available 18 mm Bianco Dolomite Marble slabs, with slab identification and the visible color-and-vein range, subject to actual availability.
4. Import the approved slab images into AutoCAD, simulate tile cutting, assign each numbered piece to a slab location and reassemble the cut pieces digitally to review the proposed elevation. AutoCAD supports attaching raster-image references to drawings, which provides the technical basis for using slab imagery within a drawing environment [2].
5. After digital-layout approval, cut and hone the tiles, then dry lay the finished pieces in their designed relationships. Inspect dimensions, edge condition, surface quality, color distribution and vein direction.
6. Remove nonconforming pieces from the set and cut suitable replacements. Replacement selection considers adjacent color, vein direction and overall visual continuity, not size alone.
7. Apply a compatible water-based protective sealer to all accepted tiles in accordance with the sealer manufacturer's preparation, coverage, curing and safety instructions.
8. Complete final inspection and piece identification, then pack the tiles with project-specific cushioning, separation, edge protection, a strong solid-wood outer crate and waterproof wrapping film.
Shop drawings communicate fabrication intent, but they do not replace field verification, approved setting-out drawings, substrate assessment or the structural and installation responsibilities of locally licensed professionals.
Why AutoCAD Layout and Factory Dry Layout Are Both Required
AutoCAD layout is a planning and approval tool. A scaled slab image allows the project team to propose where each tile will be cut, how linear movement will run and how neighboring pieces may relate before the slab is physically processed. The digital assembly also makes numbering and elevation logic easier to review.
Factory dry layout is a verification tool. It shows the actual fabricated surfaces after cutting and honing, allowing the set to be checked for chipped edges, fabrication damage, unstable or open fissures that may affect performance, unexpected visual differences and agreed appearance requirements.
- • Digital slab layout helps reduce ambiguity about intended piece locations and vein direction.
- • Physical dry layout helps verify the actual fabricated result rather than a screen representation.
- • Unique piece numbers help the installation team identify location, orientation and neighboring tiles.
- • Replacement tiles are reviewed within the full composition to improve visual coordination.
Digital approval reduces information gaps, but it does not make natural stone uniform or guarantee an identical site appearance. Camera settings, displays, fabrication, lighting, grout, substrate conditions and final installation can all influence perception.
Water-Based Sealer and Routine Care
After replacement work and acceptance, Landiview Stone applies a compatible water-based protective sealer to the qualified honed tiles. A sealer can help manage moisture or staining exposure, but it does not make marble stain-proof, acid-proof or maintenance-free. Selection and application must follow the approved product data, project specification and compatibility testing for the actual stone and finish.
Bianco Dolomite Marble is calcareous and can react with acidic substances. The Natural Stone Institute recommends mild, non-acidic cleaning for calcareous stone, prompt blotting of spills and cleaning with a neutral cleaner, stone soap or mild detergent in accordance with manufacturer instructions [3].
- • Use a pH-neutral cleaner formulated for natural stone and a soft cloth or suitable mop.
- • Blot spills promptly, rinse as appropriate and dry the surface.
- • Avoid unknown acidic or alkaline chemicals and abrasive tools unless approved for the stone and condition.
- • Confirm sealer selection and reapplication intervals from actual exposure, stone absorption, finish, use conditions and the sealer manufacturer's instructions.
- • Follow the project specification, local requirements and the recommendations of the professional installer and product manufacturer.
Project-Specific Export Packing
Completed tiles are protected according to piece size, geometry, weight, edge exposure and shipping route. Typical inner packing combines foam cushioning with plywood separation or support to limit direct contact, movement and edge impact. A strong solid-wood outer crate provides handling support, and waterproof film is wrapped around the external package.
Raw-wood packaging used in international trade may be subject to destination-country phytosanitary requirements. ISPM 15 describes measures intended to reduce pest risks associated with raw-wood packaging material; plywood and other wood processed so that it is free from pests are excluded from the standard's coverage [4]. Buyers should confirm destination-specific import and marking requirements before shipment.
For vulnerable fabricated products beyond tile packages, such as countertops with large sink or cooktop openings, narrow backsplashes, thin strips, vanity tops, fireplace parts, narrow wall panels and fragile corners, temporary support strips may be fixed over protective film. Such reinforcement is for transport only and should be removed on site before installation in accordance with the supplied instructions.
Frequently Asked Questions
Q: Can you provide samples?
A: Yes. Normally one or two samples can be provided without a sample charge. Typical sizes range from 100 × 100 mm to 200 × 200 mm. Courier cost is paid by the customer, and availability depends on the current material. A small sample is useful for reviewing finish and general color, but it cannot represent the full variation of a slab.
Q: Can I see current slab photos and videos before ordering?
A: Yes. Subject to current slab availability, Landiview Stone can provide images, videos, slab numbers, visible-surface review and the expected color-and-vein range for approval. Buyers should approve the identified slabs rather than relying only on generic material photographs.
Q: Can Landiview Stone prepare stone shop drawings from architectural drawings?
A: Yes. Landiview Stone can review architectural information, identify the stone scope and prepare stone-specific shop drawings for client or design-team approval. Shop drawings do not replace field verification or the structural and installation responsibilities of locally licensed professionals. See what is cut-to-size stone.
Q: How do you help control the final vein layout and installed appearance?
A: Approved slab scans are used for AutoCAD cutting and vein-layout simulation. After client approval, fabrication is followed by physical dry layout, inspection, replacement review and piece numbering. This process reduces information gaps and helps align the approved layout with the expected installation, but natural variation, photography, lighting, grout and site installation can affect the final appearance. See natural stone slab layout in AutoCAD.
Q: How do you protect countertops with integrated sinks and other vulnerable stone products during transport?
A: Inner protection is engineered around geometry and may include custom foam, plywood, separators and shock-reducing supports. Sink or cooktop cutouts, narrow backsplashes, thin strips, vanity tops, fireplace parts, narrow wall panels and fragile corners may receive temporary support strips applied over protective film. The reinforcement is removed before installation according to instructions. Raw-wood packaging should use ISPM 15-compliant material where required by the destination country [4]. See how to protect natural stone during shipping.
Q: How should Bianco Dolomite Marble tiles be maintained after installation?
A: Use a pH-neutral stone cleaner, address spills promptly and avoid unknown acidic or alkaline cleaners and abrasive tools. The Natural Stone Institute advises mild, non-acidic products for calcareous stone and neutral cleaner or stone soap for routine cleaning [3]. Sealer choice and reapplication timing depend on the stone, finish, exposure and manufacturer instructions. Follow the project specification and professional installer guidance.
Q: What are the tile sizes and finish in this project?
A: The project uses honed tiles in 24 × 12 in. and 12 × 12 in. formats, corresponding to 610 × 305 mm and 305 × 305 mm. The tiles were fabricated from 18 mm Bianco Dolomite Marble slabs.
Q: Where does this Bianco Dolomite Marble come from?
A: The Bianco Dolomite Marble specified for this project comes from Turkey. Current slab appearance, dimensions and availability should be confirmed for each order.
Q: Why is a factory dry layout necessary after the AutoCAD simulation?
A: AutoCAD previews the intended use of the slab image, while dry layout displays the actual cut and honed pieces. Dry layout supports checks for edge damage, fabrication defects, unstable or open fissures, unexpected visual differences, orientation and replacement-piece coordination before packing.
Q: Does the water-based sealer make the marble waterproof and stain-proof?
A: No absolute waterproof or stain-proof claim is made. A compatible water-based sealer is applied as protective treatment, but performance depends on the selected product, application, curing, stone, finish and exposure. The approved manufacturer's instructions and project requirements govern use and reapplication.
About Landiview Stone
Landiview Stone supplies natural stone in two principal forms: slabs for importers, distributors and fabricators, and project-specific cut-to-size or finished stone products for contractors, developers, designers, builders and other project buyers.
For slab buyers, Landiview Stone supports current-slab selection, slab-image review, color-and-vein range confirmation, surface inspection, slab identification and export packing. For custom fabrication, the project team can coordinate shop drawing review, slab scanning, AutoCAD cutting and vein-layout simulation, fabrication, dry-layout inspection, piece numbering, finished-product inspection, temporary reinforcement for vulnerable components and project-specific export protection.
For complex assembled products, three-dimensional modeling and virtual assembly may be used to examine component relationships, thicknesses, surface treatments, concealed reinforcement, internal clearances and potential interference before fabrication details are finalized.
Landiview Stone's international project experience includes:
- • Marble furniture, bathroom vanity tops and shower wall panels for the Grand Hyatt Singapore renovation project
- • Stone supply for stations on Singapore's Thomson-East Coast Line
- • Interior stone products for the Wynn project in the United Arab Emirates
- • Marble products for public areas of the 255 East 77th Street luxury residential project in New York
- • Interior and exterior marble and granite products for three high-end custom homes on Tuckahoe, a private resort island in Massachusetts, USA
Request A Quote
For a project-specific quotation, send the architectural drawings, installation location, required quantities, tile schedule, thickness, finish, joint assumptions, destination and approval requirements. If available, include field dimensions, substrate information and the required inspection or documentation scope.
For the most useful proposal, ask Landiview Stone to quote against the same approved scope that will govern production: identified slabs, stone shop drawings, AutoCAD layout deliverables, dry-layout inspection, replacement allowance, sealer requirement and export packing.
- • Current slab photos, videos and slab numbers are available upon request and subject to current availability.
- • Samples are available subject to material availability; courier cost is paid by the customer.
- • Pricing, production planning and packing are project-specific and are confirmed after technical review.
