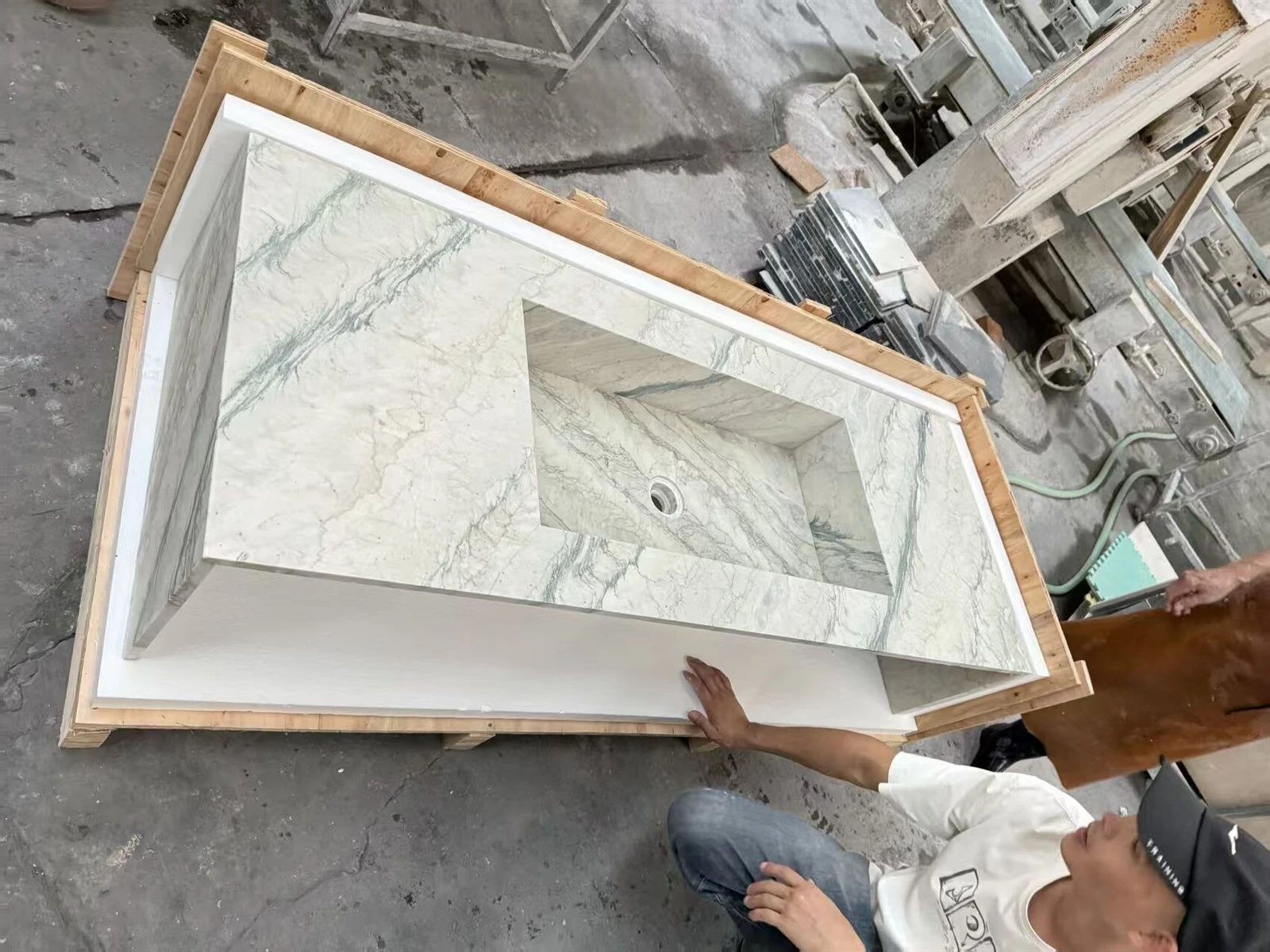

Finished Luce Di Luna Quartzite countertop with integrated sink positioned in a custom foam-lined wooden crate for inspection.

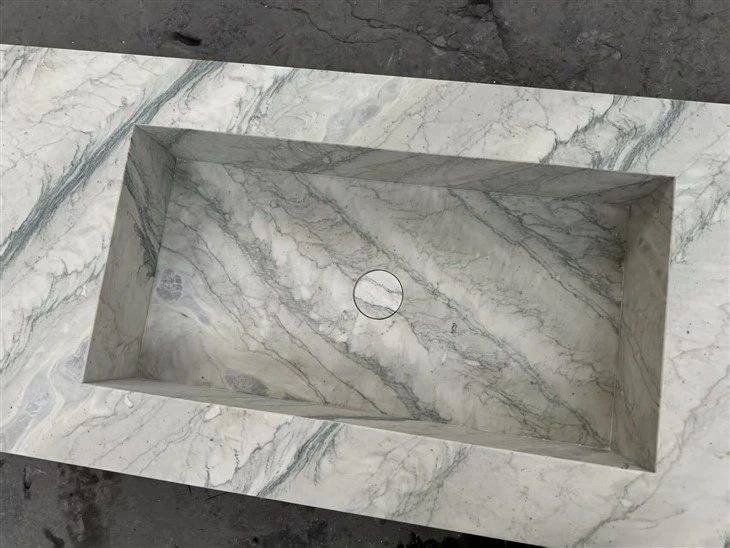

Close view of the fabricated Luce Di Luna Quartzite integrated sink, showing mitered internal corners and the drain opening.

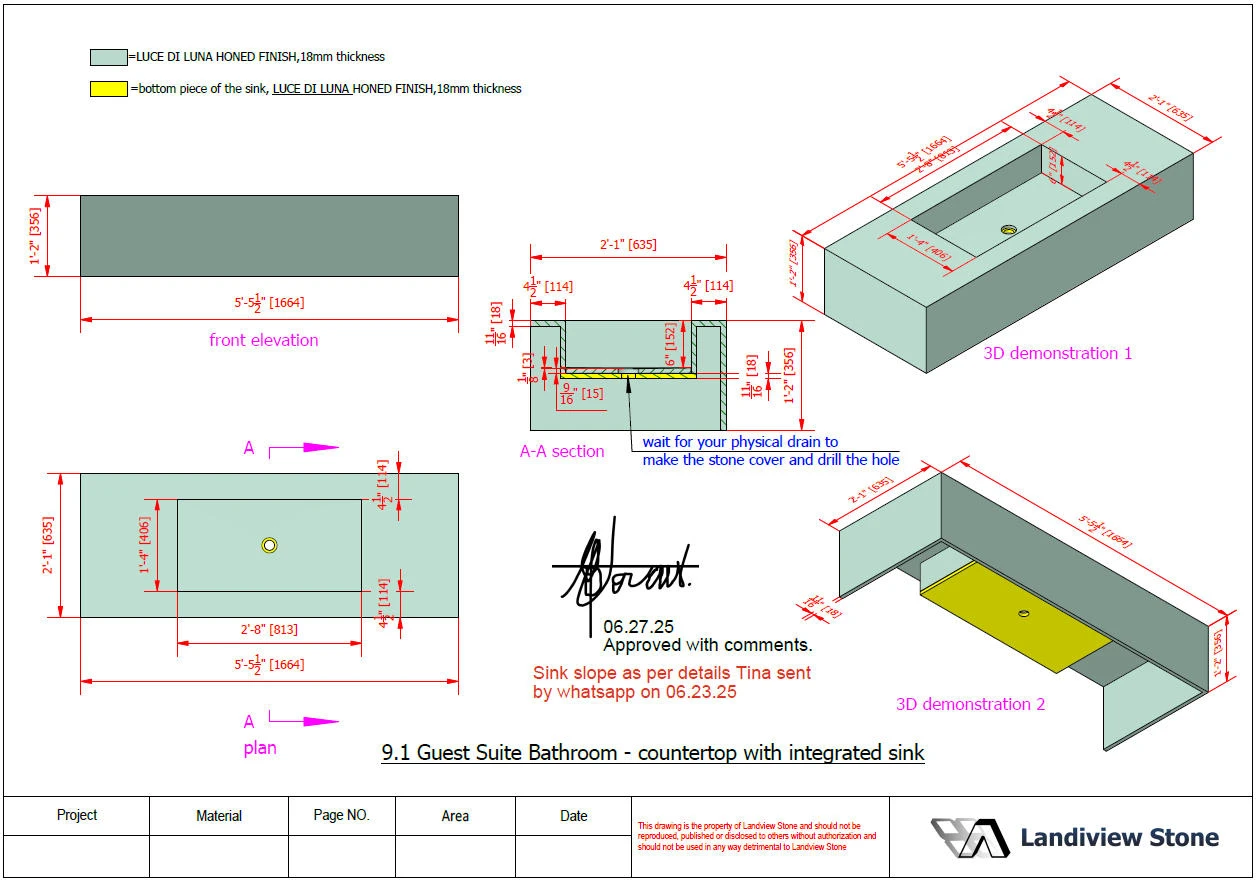

Approved Landiview Stone shop drawing showing plan, elevation, section, dimensions, material thickness, and 3D views for a guest bathroom integrated sink countertop.

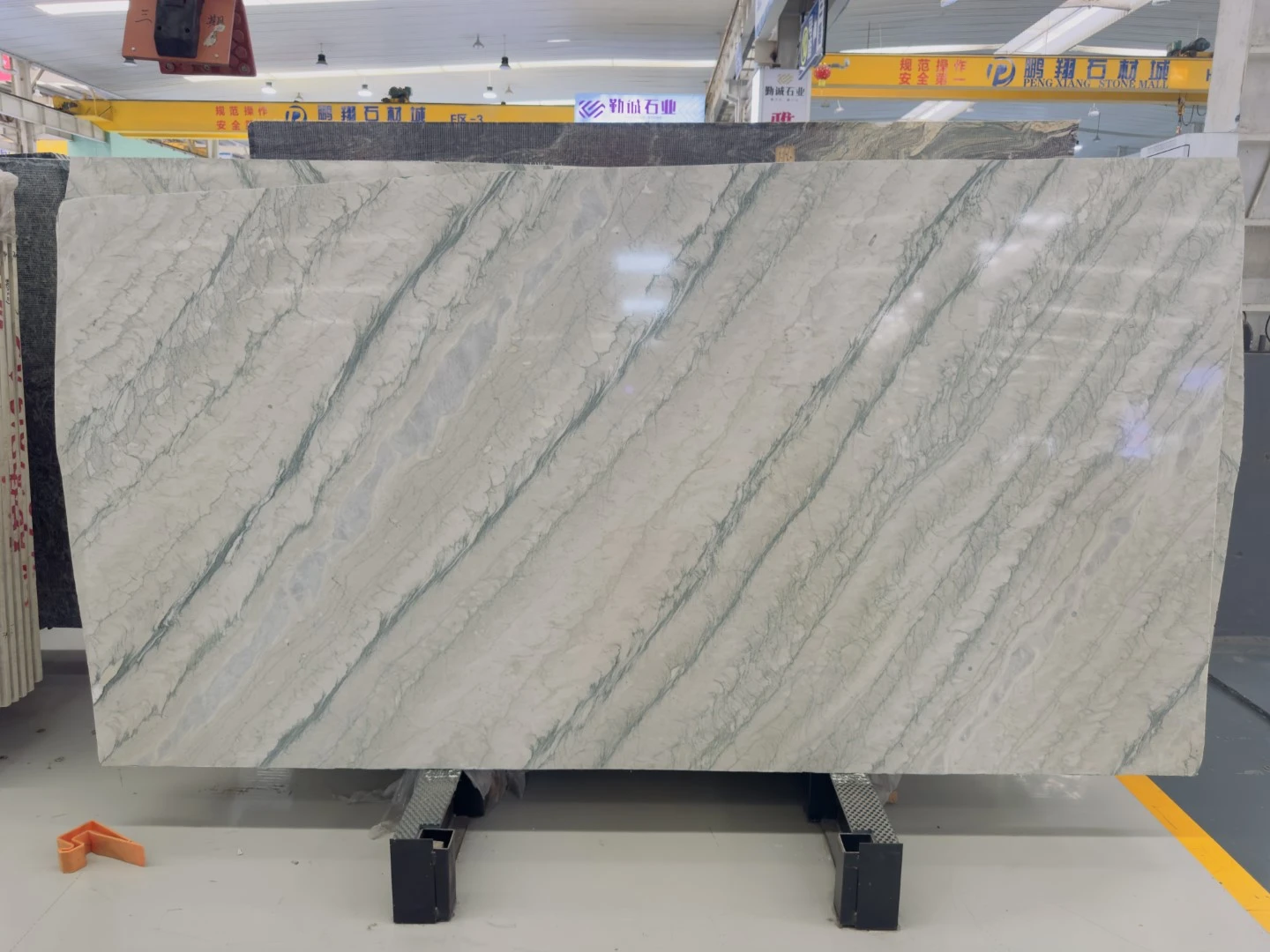

Client-approved Luce Di Luna Quartzite slab with a pale white background and diagonal gray-green natural veining.

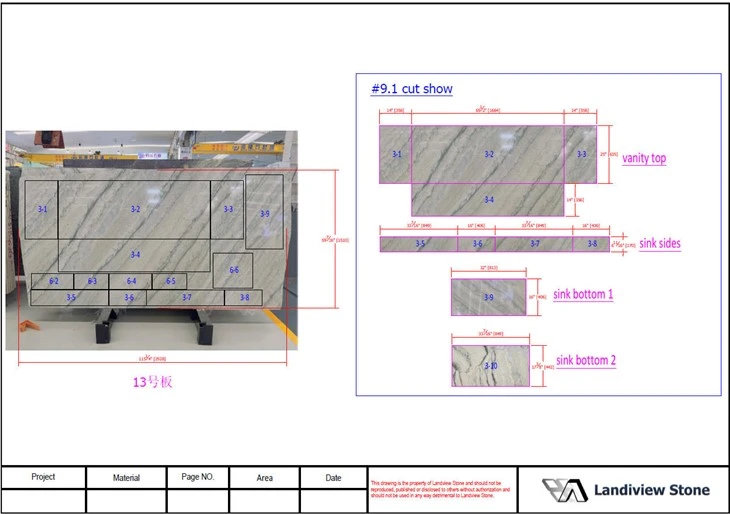

AutoCAD cutting and vein-layout drawing mapping numbered countertop and integrated sink pieces onto the approved Luce Di Luna Quartzite slab scan.
Luce Di Luna Quartzite integrated sink countertop protected by a fitted foam enclosure and plywood-lined inner packing.
Solid-wood export crate for an integrated sink countertop, secured with multiple straps and wrapped in waterproof film.
Luce Di Luna Quartzite Countertop With Integrated Sink
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Executive Summary
Direct answer: This is a project-specific Luce Di Luna Quartzite countertop with an integrated stone sink, assembled from 18 mm slabs and joined at all connecting edges with miter joints. Luce Di Luna is a Brazilian natural stone with a pale background and linear mineral movement; actual color, veining, fissures, and slab structure vary by block and slab [1].
The principal buyer-control points are approval of the shop drawing, approval of the actual slab, approval of the scan-based cutting and vein layout, inspection of the fabricated assembly, a water-holding test for the integrated sink, and packaging designed around the product's geometry.
The integrated construction reduces the visual interruption associated with a separately purchased basin, but it also makes detailing, assembly accuracy, drainage coordination, testing, handling, and installation planning especially important. Final suitability must be reviewed against the project specification, supporting cabinetry, plumbing components, local requirements, and the instructions of the responsible installation professionals.
Key Facts
| Specification Item | Project Information |
| Product | Custom countertop with integrated stone sink |
| Stone | Luce Di Luna Quartzite from Brazil [1] |
| Material thickness | 18 mm stone components |
| Visible finish | Honed, according to the approved shop drawing |
| Edge connections | Miter joints at all connecting edges |
| Drawing control | Stone-specific shop drawing prepared for client and design-team review |
| Appearance control | Actual slab approval plus scan-based AutoCAD cutting and vein-layout simulation |
| Quality control | Fabricated pieces inspected; nonconforming pieces replaced where required with attention to adjacent color and veining |
| Functional test | Water-holding test required after the integrated sink is assembled |
| Surface protection | Water-based protective sealer applied after testing and final acceptance |
| Inner packing | Custom foam enclosure with plywood support and separation |
| Outer packing | Solid-wood crate, securing straps, and external waterproof film; wood-packaging compliance depends on destination requirements [4] |
How the Countertop Was Produced
Direct answer: The countertop was developed through an approval-led sequence that connected the design documents, actual slab, digital layout, physical fabrication, testing, surface protection, and export packing.
1. Review the design intent and prepare a stone shop drawing showing the countertop, integrated sink, dimensions, 18 mm material thickness, finish, sections, drain location, and assembly geometry.
2. Submit the shop drawing for client and design-team review. Comments affecting sink slope, drain hardware, plumbing clearance, support, or installation interfaces are coordinated before fabrication.
3. Present current Luce Di Luna Quartzite slab images for approval. The review identifies the selected slab and confirms the acceptable color, movement, natural features, and visible-face direction, subject to current slab availability.
4. Import the approved slab scan into AutoCAD and map the numbered countertop, sink-side, and sink-bottom pieces onto the slab image. AutoCAD supports attached raster-image references, providing a practical digital base for the layout [2].
5. Submit the simulated cutting and assembled vein composition for client review before physical cutting. This step helps align piece locations and vein relationships with the expected appearance without treating a natural slab as visually uniform.
6. Cut and arrange the actual pieces at the factory. Inspect the fabricated material for edge damage, fabrication damage, open or unstable fissures that may affect performance, unacceptable visual areas, and other departures from the agreed criteria. Replace nonconforming parts where required, considering adjacent color and vein direction.
7. Bond the 18 mm components into one countertop-and-sink assembly. All connecting edges use miter joints. Joint execution, adhesive selection, support, and curing must follow the approved fabrication method and project requirements.
8. Conduct a water-holding test because the basin is an integrated fabricated sink. Inspect the assembly and drain area for leakage or other visible issues, then release the product only after the agreed inspection is complete.
9. Apply a compatible water-based protective sealer after water testing and final acceptance. Sealer selection, curing, site compatibility, and future reapplication must follow the product manufacturer's instructions.
10. Fit the finished assembly into a custom foam enclosure with plywood support, then secure it inside a robust solid-wood outer crate. Wrap the exterior with waterproof film and restrain the package for the planned handling and transport route.
Why Shop Drawings and Slab Approval Matter
Direct answer: Stone shop drawings translate broad architectural intent into fabrication information, while actual-slab approval confirms the natural material that will be used.
- • Shop drawings coordinate product dimensions, thickness, finish, visible faces, drain location, sink geometry, miter joints, and relevant interfaces.
- • Current slab photos and videos let the buyer review slab number, overall movement, surface condition, color range, and natural features before cutting.
- • Approval records reduce ambiguity, but they do not replace field verification, plumbing coordination, structural design, or the duties of licensed local professionals.
- • Natural fissures and mineral features should not automatically be classified as structural cracks or fabrication defects. Their location, stability, openness, appearance, and effect on the intended use must be evaluated case by case.
How AutoCAD Helps Control the Vein Layout
Direct answer: Landiview Stone places the required parts over the approved slab scan in AutoCAD so the buyer can review where each component is cut and how the veins relate across the countertop and sink before the slab is physically processed.
Scan-based cutting simulation is an approval and communication tool. It helps connect slab selection with the proposed finished composition, but natural variation, scan quality, fabrication tolerances, joint width, viewing conditions, and site installation can still influence the final appearance.
After cutting, physical inspection remains necessary because a digital layout shows the intended composition, while factory review shows the actual fabricated pieces. Dry arrangement or assembly review can identify damage, unsuitable areas, or replacement needs and can support consistent numbering for installation.
Integrated Sink Water Testing and Surface Protection
Direct answer: A fabricated integrated sink must be water tested after assembly. Once the water test and product inspection are accepted, the finished stone receives a compatible water-based protective sealer.
The test is intended to check the assembled basin, miter-jointed corners, bonded interfaces, and drain area under retained water. The test protocol and acceptance criteria should be aligned with the approved project requirements. A factory test does not replace correct site plumbing, drain installation, cabinet support, final sealing of site interfaces, or local code compliance.
A penetrating sealer may help manage staining exposure, but it does not make natural stone stain-proof, waterproof in every detail, or maintenance-free. The selected product must be appropriate for the stone and honed finish. Application, curing, ventilation, compatibility, and reapplication must follow the sealer manufacturer's instructions and the project specification.
Export Packing for an Integrated Sink Countertop
Direct answer: The packing system is designed around the finished assembly's size, weight, sink opening, edges, and vulnerable geometry rather than using a generic crate.
- • A fitted foam enclosure cushions the product, limits movement, and separates finished surfaces from harder packing elements.
- • Plywood is added inside the package to improve separation, support, and load distribution.
- • A solid-wood outer crate provides structural containment for factory handling, forklift movement, container loading, ocean transport, unloading, and site transfer.
- • External waterproof film helps reduce exposure during logistics, but it does not justify outdoor storage or uncontrolled moisture exposure.
- • Temporary reinforcement may be applied over protective film where cutouts, narrow sections, backsplashes, thin strips, or vulnerable corners need additional transport support. It is removed before installation according to the supplied instructions.
- • Raw-wood packaging must use compliant treatment and marking when required by the destination. ISPM 15 addresses phytosanitary measures for wood packaging material used in international trade [4].
What Buyers Should Specify Before Ordering
A technically complete inquiry produces a more useful quotation and reduces late-stage assumptions. Buyers should provide the following where available:
- • Architectural drawings, cabinet drawings, field dimensions, installation location, and responsible design parties;
- • required stone, acceptable appearance range, finish, thickness, visible-face rules, and edge details;
- • sink intent, drain components, faucet specifications, plumbing clearances, backsplash conditions, and required slope;
- • joint preferences, support concept, reinforcement constraints, and site-applied interfaces;
- • slab-selection method and the approval deliverables required for scan-based vein layout;
- • inspection, water-test, photography, dry-layout, protection, and documentation requirements;
- • site access, lifting limits, crate-opening method, unloading equipment, and final installation sequence;
- • destination, shipping mode, wood-packaging rules, labeling, and non-stacking requirements.
Frequently Asked Questions
Q: Can you provide samples?
A: Yes. Normally one or two samples can be provided without a sample charge. Typical sizes range from 100 × 100 mm to 200 × 200 mm. Courier cost is paid by the customer. Availability depends on the current material. A small sample is useful for reviewing finish and general color, but it cannot represent the full movement of a slab.
Q: Can I see current slab photos and videos before ordering?
A: Yes. Subject to actual inventory, Landiview Stone can provide current-lot photos, videos, slab numbers, surface-review information, and the visible range of color and veining for buyer approval. The approved slab should be identified before scan-based layout and cutting.
Q: Can Landiview Stone prepare stone shop drawings from architectural drawings?
A: Yes. Landiview Stone can identify the stone scope in architectural information and prepare stone-specific shop drawings for client and design-team review. Shop drawings communicate fabrication intent but do not replace field verification or the structural, code, engineering, plumbing, and installation responsibilities of qualified local professionals. See what is cut-to-size stone?
Q: How do you help control the final vein layout and installed appearance?
A: The process combines actual-slab approval, slab scanning, AutoCAD cutting and vein-layout simulation, client approval, controlled fabrication, and physical dry-layout or assembly inspection. These steps reduce information mismatch and help align the approved layout with the intended composition. They cannot provide an absolute appearance guarantee because natural variation, joint conditions, lighting, fabrication tolerances, and site installation affect the result. See natural stone slab layout in AutoCAD.
Q: How is the countertop with integrated sink protected during shipping?
A: Inner protection is designed around the geometry and may include fitted foam, cushioning, plywood support or dividers, edge protection, and positioning elements. Sink and cooktop cutouts, elongated backsplashes, thin strips, vanity tops, fireplace parts, narrow wall panels, and vulnerable corners may receive temporary reinforcement over protective film. The reinforcement is only for transport and is removed before installation according to instructions. The outer package uses a robust wood crate and weather-protective wrapping. Wood packaging must comply with destination rules, including ISPM 15 where applicable [4]. See how to protect natural stone during shipping.
Q: How should the installed countertop and sink be maintained?
A: Use a pH-neutral cleaner intended for natural stone or mild soap as directed, blot spills promptly, rinse as required, and dry with a soft cloth. Avoid unknown acidic or alkaline chemicals and abrasive tools. Even siliceous stone can contain acid-sensitive trace minerals, so acidic cleaners are not recommended [3]. Sealer selection and reapplication intervals depend on the stone, finish, exposure, use, and sealer manufacturer's instructions. Follow the project specification and advice from the installer and product manufacturer.
Q: Why is a water-holding test required?
A: The basin is fabricated as part of the stone assembly, so the completed sink must be checked with retained water before release. The review focuses on the assembled basin, bonded miter joints, corners, and drain area. Site plumbing and installation still require separate professional verification.
Q: Are all connecting edges miter jointed?
A: Yes, all connecting edges in this project use miter joints to create the countertop-and-sink assembly from 18 mm Luce Di Luna Quartzite components. Joint appearance and strength depend on accurate cutting, compatible adhesive, surface preparation, support, curing, handling, and installation conditions.
Q: Does the water-based sealer make the stone waterproof and stain-proof?
A: No. A compatible penetrating sealer is a protective treatment that can help manage liquid absorption and staining exposure, but it is not a promise of waterproofing, stain-proof performance, or maintenance-free use. Product choice, application, curing, and reapplication should follow the manufacturer's instructions.
Q: What information is needed for a quotation?
A: Provide architectural or cabinet drawings, confirmed dimensions, stone and finish, thickness, visible-face requirements, sink and drain details, faucet and plumbing clearances, edge and joint expectations, support concept, quantity, inspection and documentation requirements, destination, and packing or shipping constraints. Pricing, lead time, material availability, and minimum quantities are project-specific and available upon request.
About Landiview Stone
Landiview Stone supplies natural stone in two principal forms: slabs for importers, distributors, and fabricators, and project-specific cut-to-size or finished stone products for contractors, developers, designers, builders, and other project buyers.
For slab buyers, Landiview Stone supports current-slab selection, slab-image review, color and vein-range confirmation, surface inspection, slab identification, and export packing.
For custom-fabrication projects, the company can coordinate shop drawing review, slab scanning, AutoCAD cutting and vein-layout simulation, fabrication, dry-layout inspection, piece numbering, finished-product inspection, temporary reinforcement for vulnerable components, and project-specific export protection.
For geometrically complex products, the project team may use three-dimensional part modeling and virtual assembly review to examine component relationships, material thicknesses, surface treatments, concealed reinforcement, internal clearances, and possible interference before fabrication details are finalized.
Landiview Stone's international project experience includes:
- • Marble furniture, bathroom vanity tops, and shower wall panels for the Grand Hyatt Singapore renovation project
- • Stone supply for stations on Singapore's Thomson-East Coast Line
- • Interior stone products for the Wynn project in the United Arab Emirates
- • Marble products for public areas of the 255 East 77th Street luxury residential project in New York
- • Interior and exterior marble and granite products for three high-end custom homes on Tuckahoe, a private resort island in Massachusetts, USA
Request a Quote
Please include available architectural or cabinet drawings, confirmed dimensions, preferred finish, sink and drain information, faucet and plumbing clearances, quantity, destination, packaging requirements, and the approval documents required before production.
Current slab photos, videos, slab numbers, samples, shop drawing support, scan-based AutoCAD vein layout, inspection documentation, and export packing options are available depending on project requirements and current material availability.
